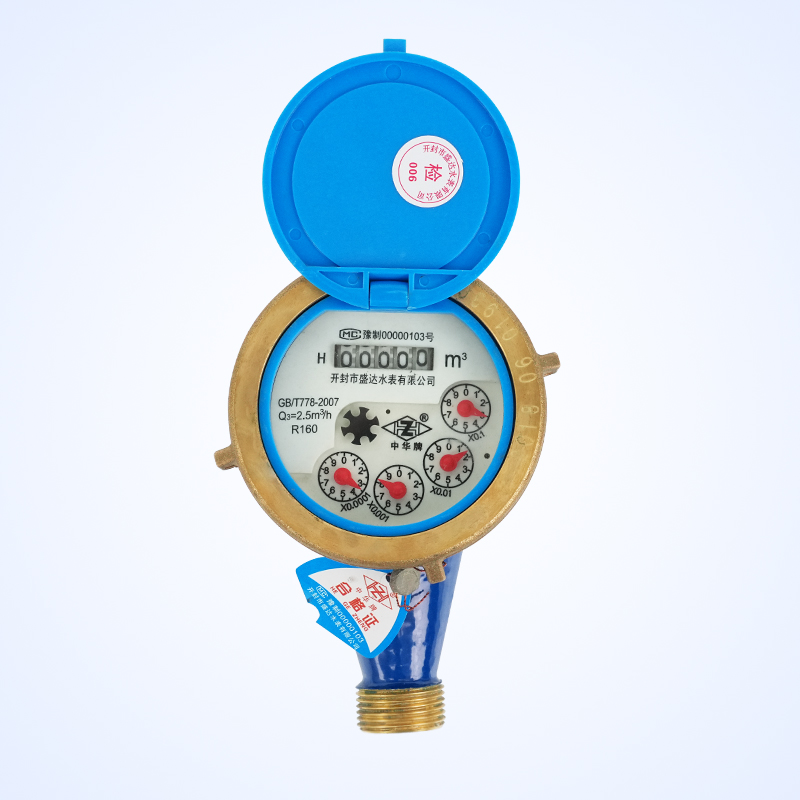

The Multi Jet Water Meter is a reliable and widely used mechanical water metering solution designed for domestic and commercial water supply systems. Featuring multi-jet flow technology, it ensures stable measurement, long service life, and strong resistance to impurities in water.
Our Multi Jet Water Meter adopts a multi-jet impeller structure that distributes water flow evenly across the rotor, providing excellent sensitivity and consistent performance.
Key Features
1. Multi-Jet Impeller Design
Even water distribution across the rotor
Stable and accurate measurement
Low wear and long-term durability
2. High Accuracy
Complies with ISO 4064 standards
Accuracy class R100 / R160 optional
3. Dry Dial or Wet Dial Optional
Dry dial for clear reading
Wet dial for better durability
4. Anti-Tamper Protection
Magnetic shields to prevent external interference
Sealed register
Optional reed switch for remote reading
5. Optional AMR / Smart Upgrade
Can be upgraded to:
Reed switch pulse output
M-Bus,LoRa / LoRaWAN,NB-IoT,4G (optional)
OEM & Services
✔ OEM Branding
Custom logo
Dial plate design
Customized packaging
✔ Smart Upgrade Solutions
We can provide:
Pulse modules
LoRaWAN gateways
NB-IoT cloud meter reading platform
Management software
|
Diameter (mm) |
Class |
Q4 (m³/h) |
Q3 (m³/h) |
Q2 (m³/h) |
Q1 (m³/h) |
Min. Reading m³ |
Max. Reading m³ |
|
DN15 |
B |
3.125 |
2.5 |
0.05 |
0.03125 |
0.0001 |
99999 |
|
DN20 |
B |
5 |
4 |
0.08 |
0.05 |
0.0001 |
99999 |
|
DN25 |
B |
7.875 |
6.3 |
0.126 |
0.07875 |
0.0001 |
99999 |
|
DN32 |
B |
12.5 |
10 |
0.2 |
0.125 |
0.0001 |
99999 |
|
DN40 |
B |
20 |
16 |
0.32 |
0.2 |
0.001 |
99999 |
|
DN50 |
B |
31.25 |
25 |
3.15 |
0.5 |
0.001 |
99999 |
